Go to file

jimmy 1275d60aaa Make alternating pattern timing independent of n1

- Changed alternating pattern to return delay/2 instead of delay
- Each phase now lasts delay/2, making full cycle equal to delay
- n1 now only controls ON/OFF segment width, not timing

2025-09-18 19:11:35 +12:00

lib

Initial commit

2025-01-18 16:26:30 +13:00

screenshots

Add screenshots

2025-02-06 22:45:58 +13:00

src

Make alternating pattern timing independent of n1

2025-09-18 19:11:35 +12:00

test

main: enforce event-driven behavior; run selected pattern once per message; clarify comments; fix pattern lookup

2025-09-17 20:20:41 +12:00

.gitignore

Ignore .venv

2025-05-07 19:46:28 +12:00

dev.py

Initial commit

2025-01-18 16:26:30 +13:00

LICENSE

Initial commit

2025-01-02 09:12:39 +00:00

patterns.py

patterns: alternating uses n1 (on) and n2 (off); ensure visible ON color; return delay; phase via self.step

2025-09-16 21:22:47 +12:00

Pipfile

Pipfile: sync dependencies

2025-09-15 12:58:45 +12:00

Pipfile.lock

Pipfile.lock: update lockfile

2025-09-15 12:58:51 +12:00

README.md

Add screenshots

2025-02-06 22:45:58 +13:00

test.py

Initial commit

2025-01-18 16:26:30 +13:00

README.md

led-bar

Install Pipenv

https://pipenv.pypa.io/en/latest/installation.html

Download dependencies

pipenv sync

Install Micropython

https://micropython.org/resources/firmware/ESP32_GENERIC_C3-20241129-v1.24.1.bin

pipenv run esptool.py --port PORTNAME erase_flash
pipenv run esptool.py --port PORTNAME --baud 460800 write_flash 0 ESP32_GENERIC_C3-20241129-v1.24.1.bin

Upload libraries and src

pipenv run ./dev.py PORTNAME lib src

Upload src, reset and follow

pipenv run ./dev.py PORTNAME src reset follow

Connect

Connect to wifi nextwork called led-xxxxxx...

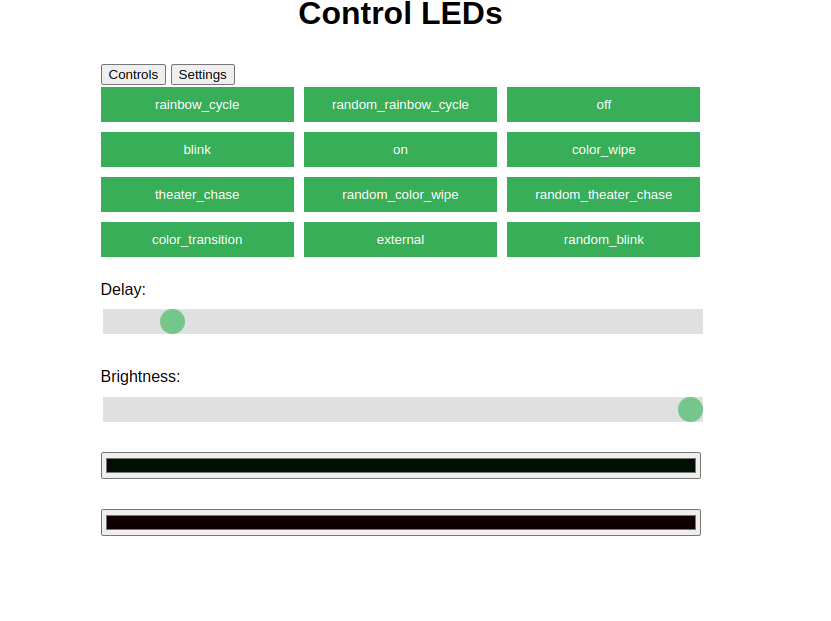

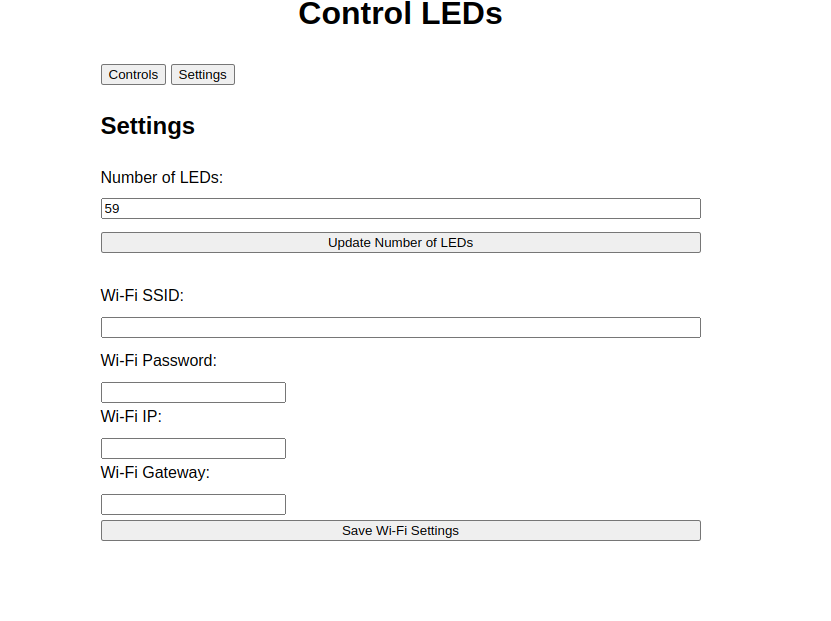

http://192.168.4.1/
